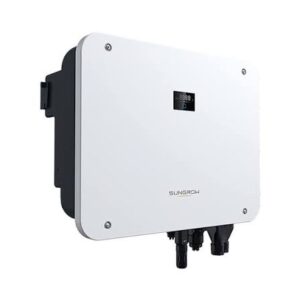

Sungrow 10kW Hybrid Inverter

Sungrow 10kW Hybrid Inverter – SH10RT

Specification	Details
Model	Sungrow SH10RT
Inverter Type	3-Phase Hybrid Inverter
Rated AC Output Power	10,000 W
Max. PV Input Power	15,000 Wp
Max. PV Input Voltage	1,000 V
MPPT Voltage Range	200–950 V
MPPTs	2 Independent MPPTs
PV Strings	1 / 2 per MPPT
Max. PV Input Current	37.5 A (12.5 A / 25 A)
Battery Type	Li-ion
Battery Voltage Range	150–600 V
Max. Battery Charge Current	30 A
Max. Battery Discharge Current	30 A
Max. Battery Charge/Discharge Power	10,600 W / 10,600 W
Rated AC Voltage	220/380 V, 230/400 V
AC Voltage Range	270–480 V
Grid Frequency	50 Hz
Max. AC Output Current	15.2 A
Max. Efficiency	98.4%
European Efficiency	97.9%
Backup Output	10,000 W / 10,000 VA
Backup Switching Time	<20 ms
Peak Backup Power	Up to 12,000 W for 5 minutes
Surge Protection	DC Type II / AC Type II
Protection Rating	IP65
Cooling	Natural Convection
Operating Temperature	-25°C to +60°C
Communication	RS485, WLAN, Ethernet, CAN
Dimensions	460 × 540 × 170 mm
Weight	Approx. 27 kg
Parallel Operation	Up to 5 inverters
Monitoring	Sungrow iSolarCloud
